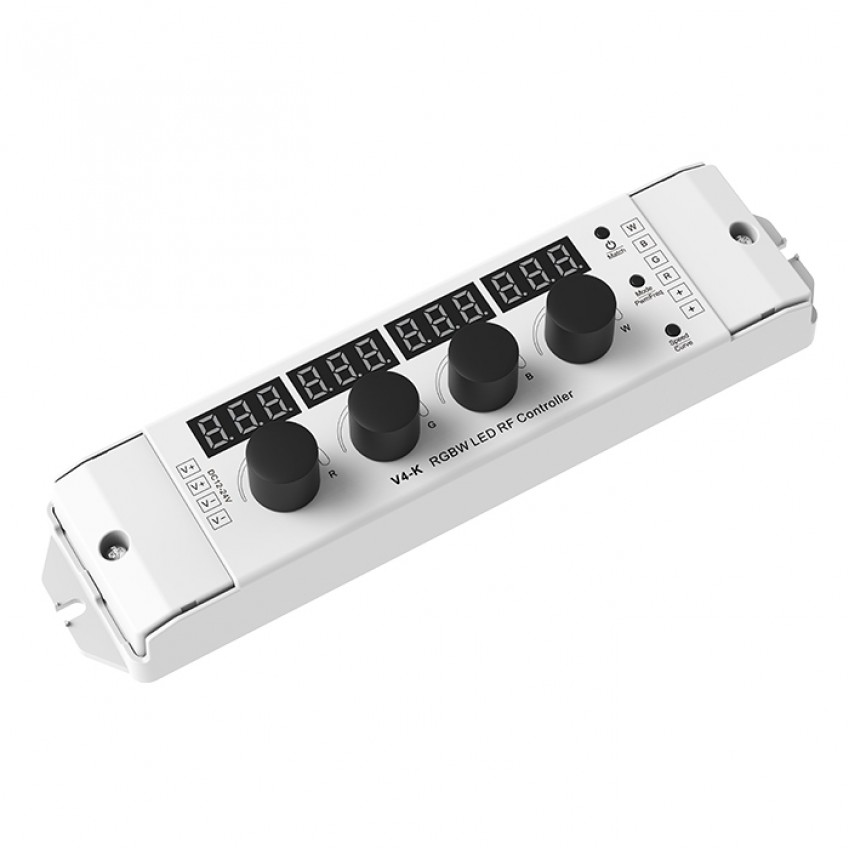

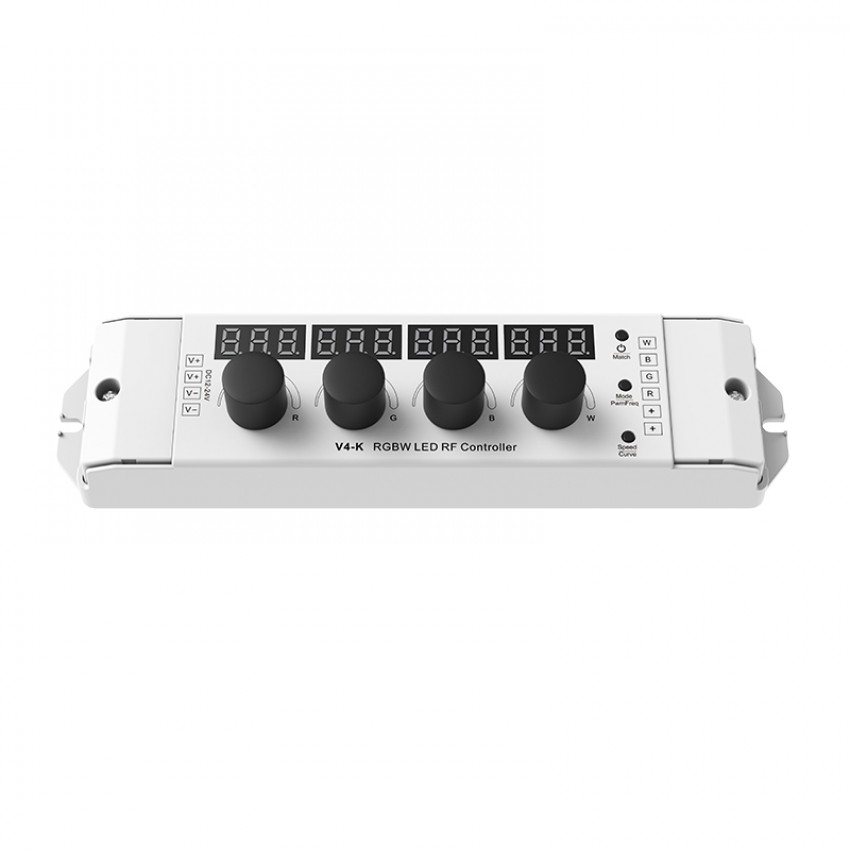

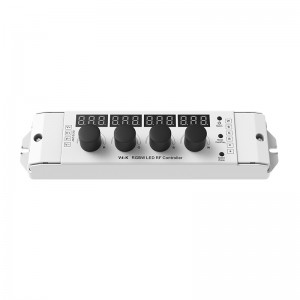

4 Knob RGBW LED RF Controller
£63.77
Excluding VAT
£53.14
Availability
In Stock
Product Code
C-V4-K
Description

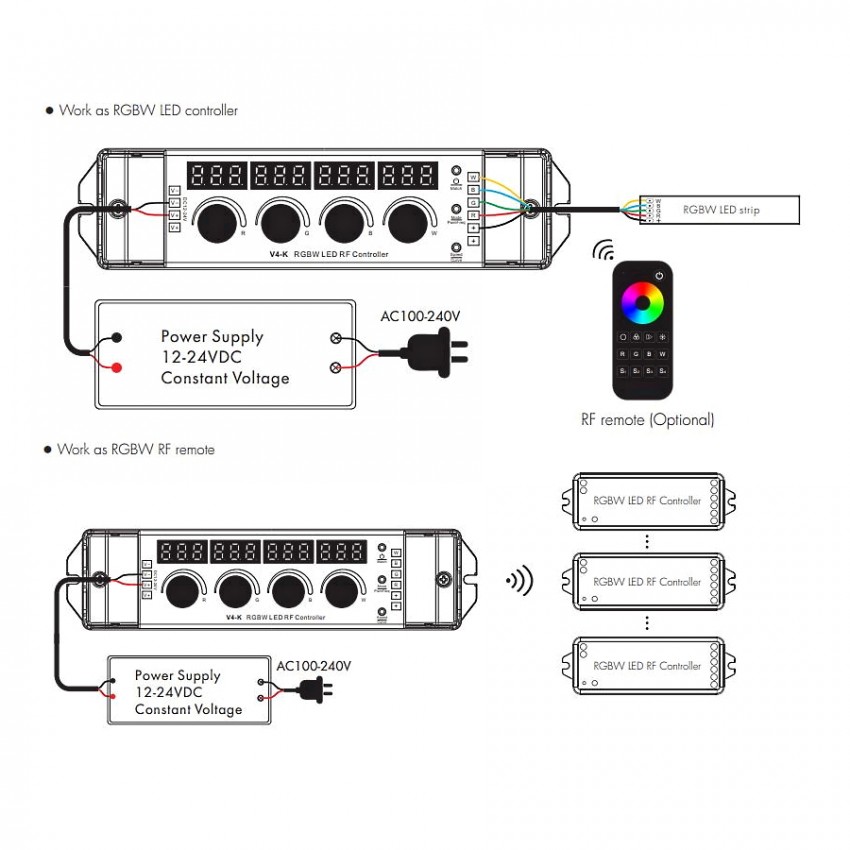

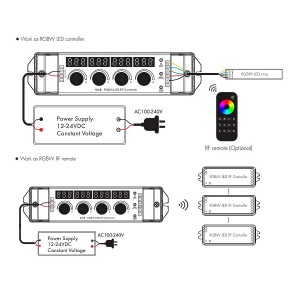

RGBW constant voltage LED RF controller that can also be used as an RGBW RF remote.
Features & Benefits

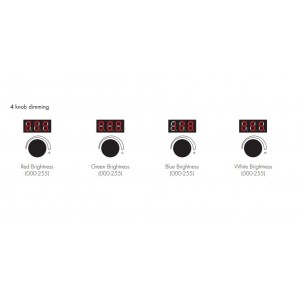

- 4 knob dimming (R, G, B, W) for precise colour selection
- Pair with RF 2.4G single zone or multiple zone RGBW remote control (optional)
- 256 levels of 0-100% dimming smoothly without any flash

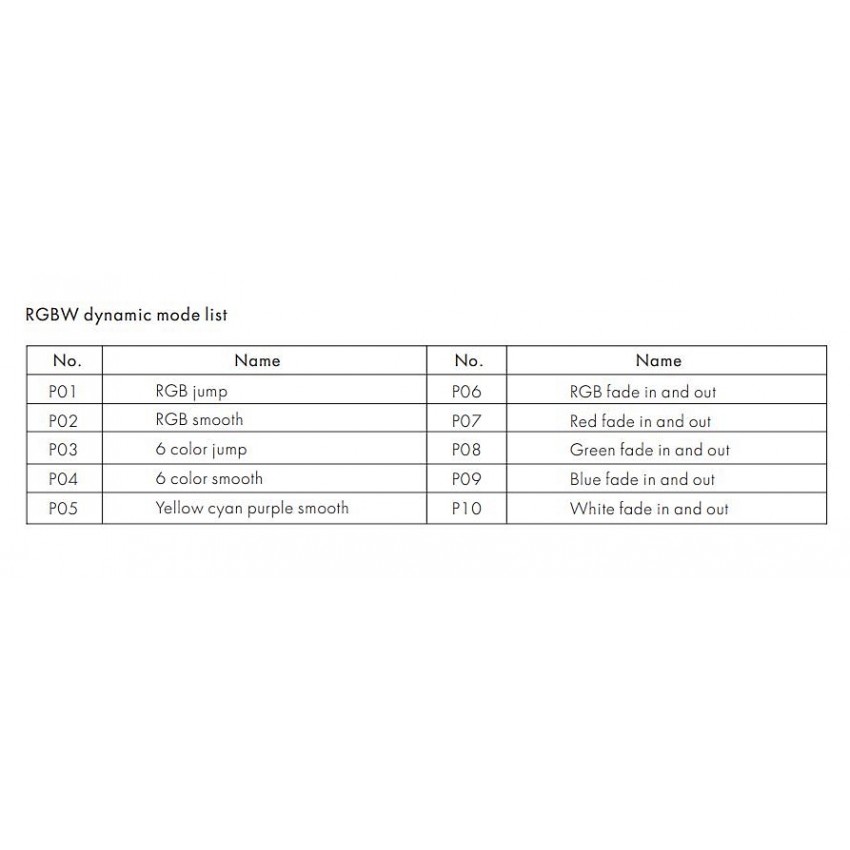

- Built in 10 dynamic mode, include jump or gradual change style
- PWM frequency 1000/2000/4000/8000Hz selectable
- Logarithmic or linear dimming curve selectable
- 5 year warranty
Specification
Input and Output
Input current
16.5A
Output Voltage
4 x (12-24)VDC
Output Current
4CH,4A/CH,Max 6A
Output power
4 x (48-96)W
Output type
Constant voltage
Protection
Protection
Reverse polarity
Environment
Case temperature (Max.)
Tc: +85°C
Operating Temperature
Ta: -30°C ~ +55°C
IP Rating
IP20
Dimming data
Control distance
30m (Barrier-free space)
Input signal
Knob + Key + RF 2.4GHz
Dimming gray scale
256 levels
Dimming curve
Logarithmic or linear
Dimming range
0 -100%
PWM Frequency
1000/2000/4000/8000Hz
Safety & EMC
Safety Standards
EN 62368-1:2020+A11:2020
EMC
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Radio Equipment
ETSI EN 300 328 V2.2.2
Certification
CE,EMC,LVD,RED
Technical Details
Input Voltage
12-24VDC
Lifespan
Warranty
5 years
