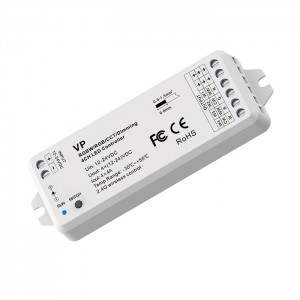

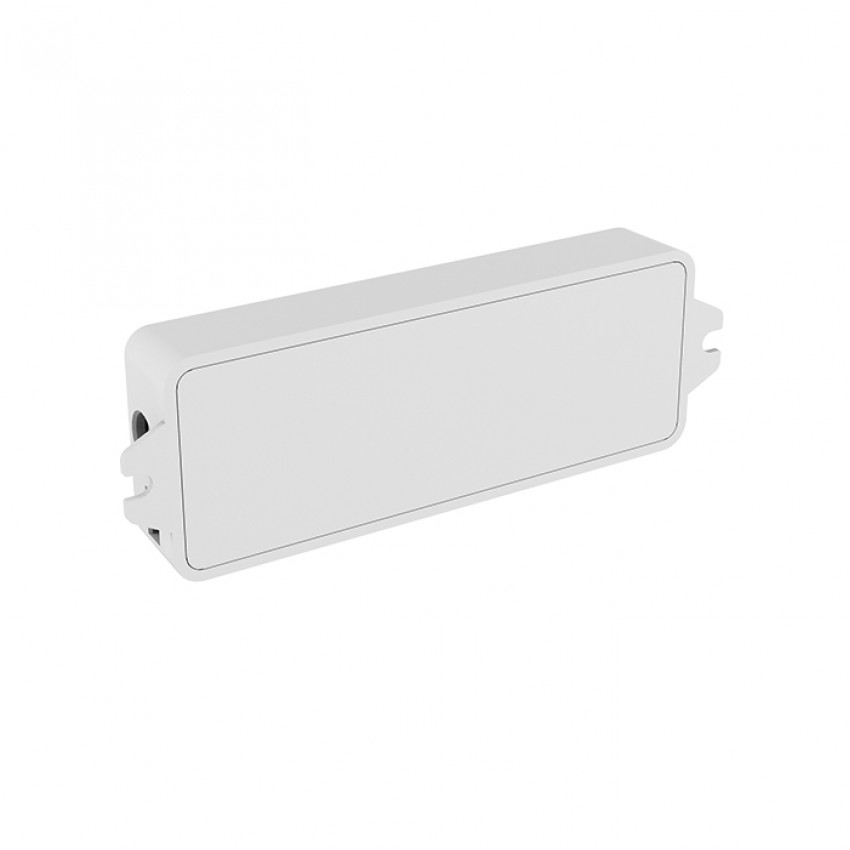

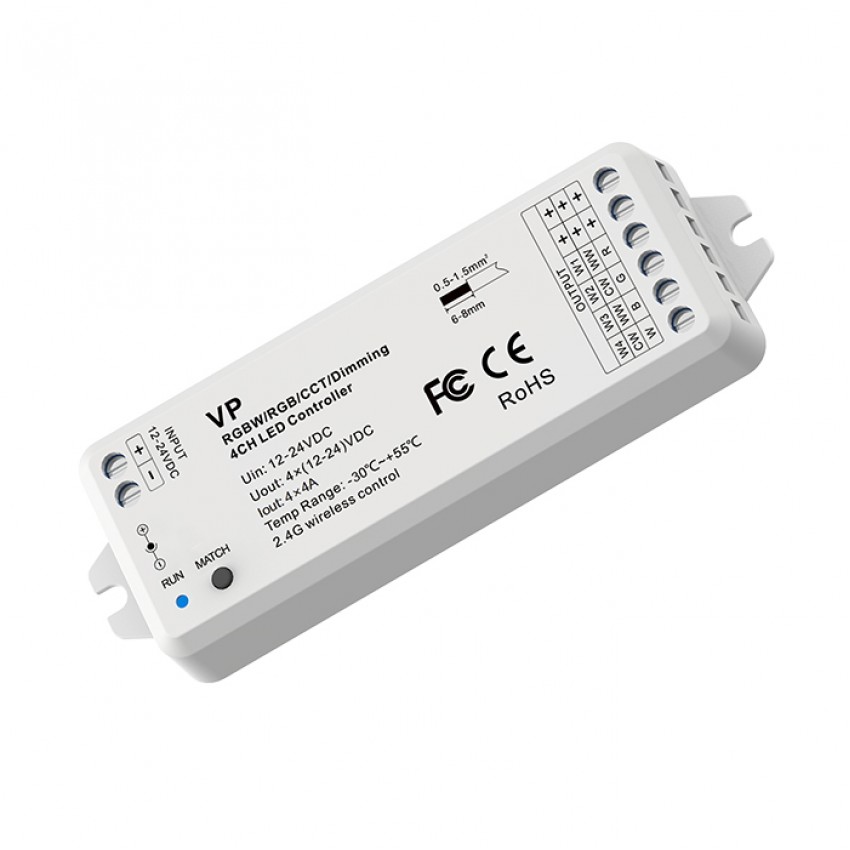

Multi-Purpose LED RF Receiver
£27.78
Excluding VAT
£23.15
Availability
In Stock
Product Code
C-VP
Description
RGBW/RGB/CCT/Dimming, 4 Channel LED RF receiver.
Features & Benefits
- DC power socket input and 4 channel constant voltage output
- Match with RF 2.4G single zone or multiple zone single colour, dual colour and RGB/RGBW remote control
- One receiver can accept up to 10 remote controls
- 4096 levels 0-100% dimming smoothly without any flash
- When using with RGB/RGBW lights, features include built-in 10 dynamic modes
- Auto-transmitting function: receiver automatically transmits signal to another receiver within 30m distance
- Synchronise multiple number of receivers
- 5 year warranty
Specification
Input and Output
Input voltage
12-24VDC
Input current
15.5A
Output Voltage
4 x (12-24)VDC
Output Current
4CH,4A/CH,Max 6A
Output power
4 x (48-96)W
Output type
Constant voltage
Protection
Protection
Reverse polarity; Short circuit
Environment
Case temperature (Max.)
Tc: +85°C
Operating Temperature
Ta: -30°C ~ +55°C
IP Rating
IP20
Dimming data
Control distance
30m (Barrier-free space)
Input signal
RF 2.4GHz
Dimming gray scale
4096 (2^12) levels
Dimming curve
Logarithmic
Dimming range
0 -100%
PWM Frequency
1000Hz (default)
Safety & EMC
Safety Standards
EN 62368-1:2020+A11:2020
EMC
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Radio Equipment
ETSI EN 300 328 V2.2.2
Certification
CE,EMC,LVD,RED
Lifespan
Warranty
5 years
