Mains Powered Wall Plate - 4 Zone RGB+CCT
£47.44
Excluding VAT
£39.53
Availability
In Stock
Product Code
C-T15-1
Description
Mains powered, wall mounted glass touch panel with the ability to control colour, speed and brightness of RGB and/or RGBW LED lights in up to 4 separate zones (100-240VAC input).

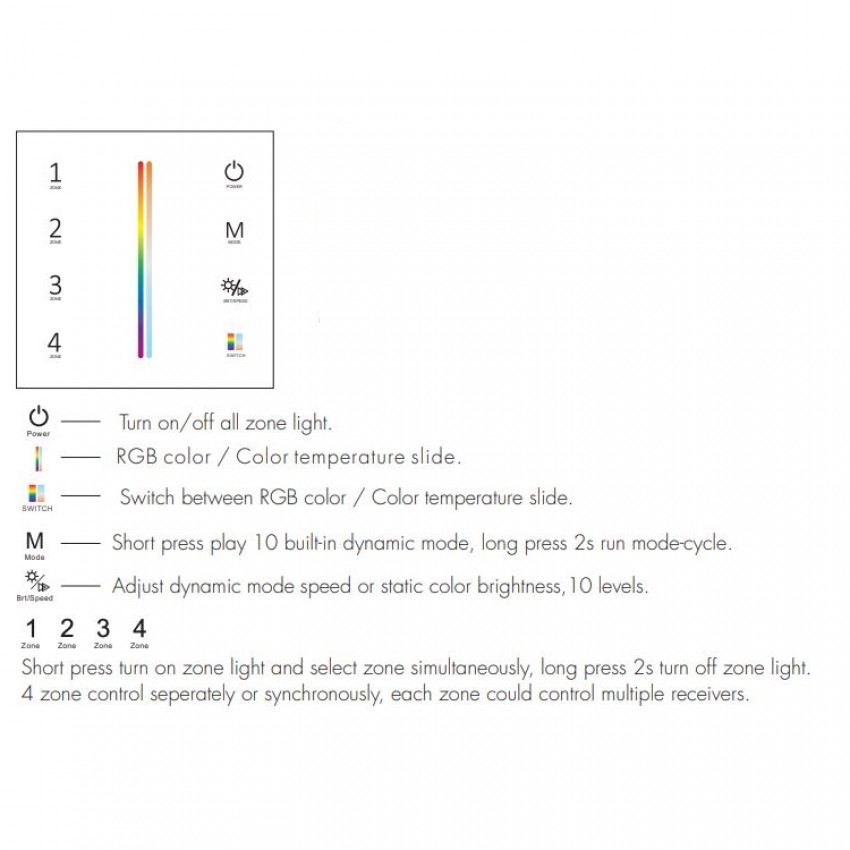

Features & Benefits
- RGB / colour temperature touch slide
- 10 built-in modes
- Adjust dynamic mode speed or static colour brightness, 10 levels
- Ultra-sensitive, glass touch panel
- Smooth and accurate colour adjustment by touching the colour slide in the middle
- Modern, sleek design
- Once a receiver has been assigned to each zone, you can control 4 zones independently using one wall plate
- Touch keys with LED indicator

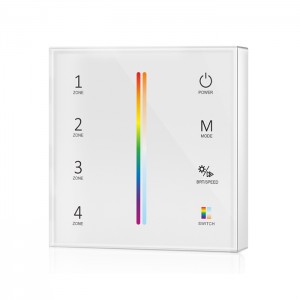

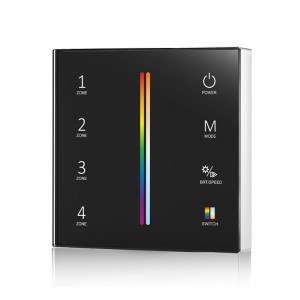

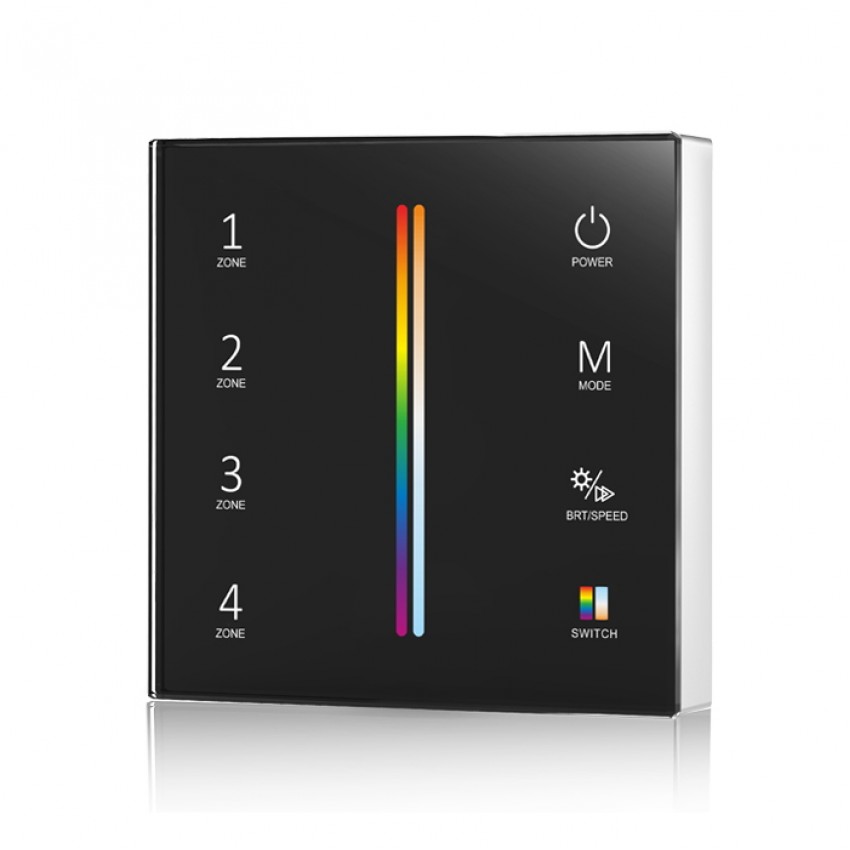

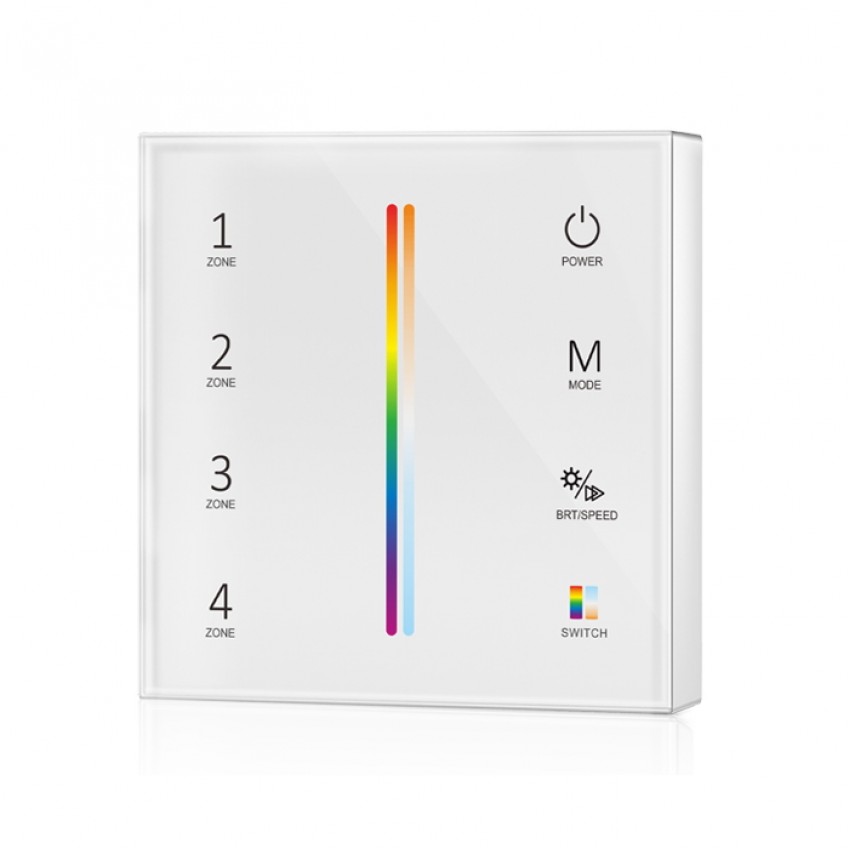

- Available in black or white
- 5 year warranty
RGB+CCT Dynamic Mode List
No. | Name | No. | Name |
1 | RGB jump | 6 | RGB fade in and out |
2 | RGB smooth | 7 | Red fade in and out |
3 | 6 colour jump | 8 | Green fade in and out |
4 | 6 colour smooth | 9 | Blue fade in and out |
5 | Colour temperature smooth | 10 | White fade in and out |
Specification
Input and Output
Input voltage
100-240VAC
Output signal
DMX512, RF 2.4GHz
Input current
Max 0.1A
Environment
Operating Temperature
Ta: -30°C ~ +55°C
IP Rating
IP20
Weight
Net weight
176g
Gross weight
230g
Dimming data
Input signal
Touch key + RF 2.4GHz
RF Control distance
10m(Barrier-free space)
Dimming level
256 levels
Dimming range
0-100%
Safety & EMC
Safety Standards
EN 62368-1:2020+A11:2020
EMC
ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Radio Equipment
ETSI EN 300 328 V2.2.2
Certification
CE,EMC,LVD,RED
Lifespan
Warranty
5 years
Downloads
