Mains Powered Wall Plate - 4 Zone CCT
£45.78
Excluding VAT
£38.15
Availability
In Stock
Product Code
C-T12-1-CCT
Description

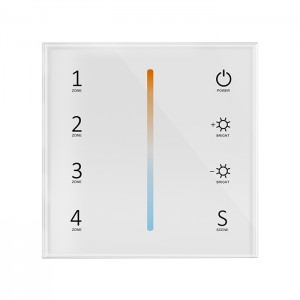

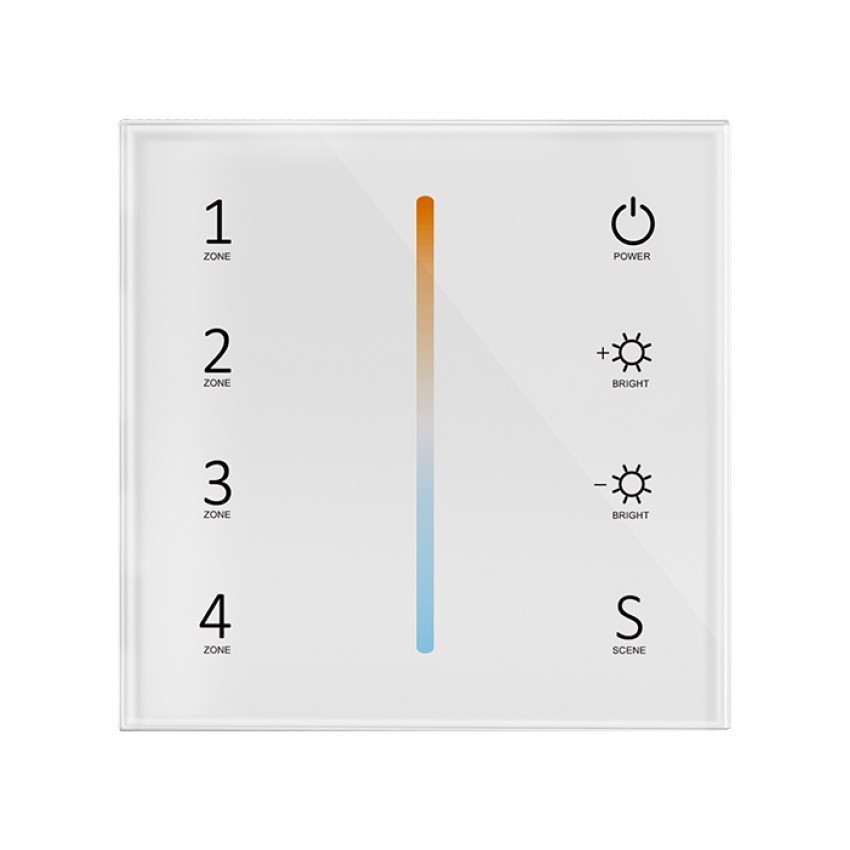

Mains powered, wall mounted glass touch panel with the ability to control temperature of LED lights in up to 4 zones (100-240VAC Input).
Features & Benefits
- Touch panel 4 zone 1-5 colour DMX512 master, can also be used as 4 zone 1-5 colour RF remote
- DMX signal output compatible with DMX decoder
- When used as an RF remote, each zone can control multiple RF 2.4G LED controllers
- Ultra sensitive high strength glass touch panel with touch colour slide in the middle
- Modern, sleek design
- Once a receiver has been assigned to each zone, you can control up to 4 zones independently

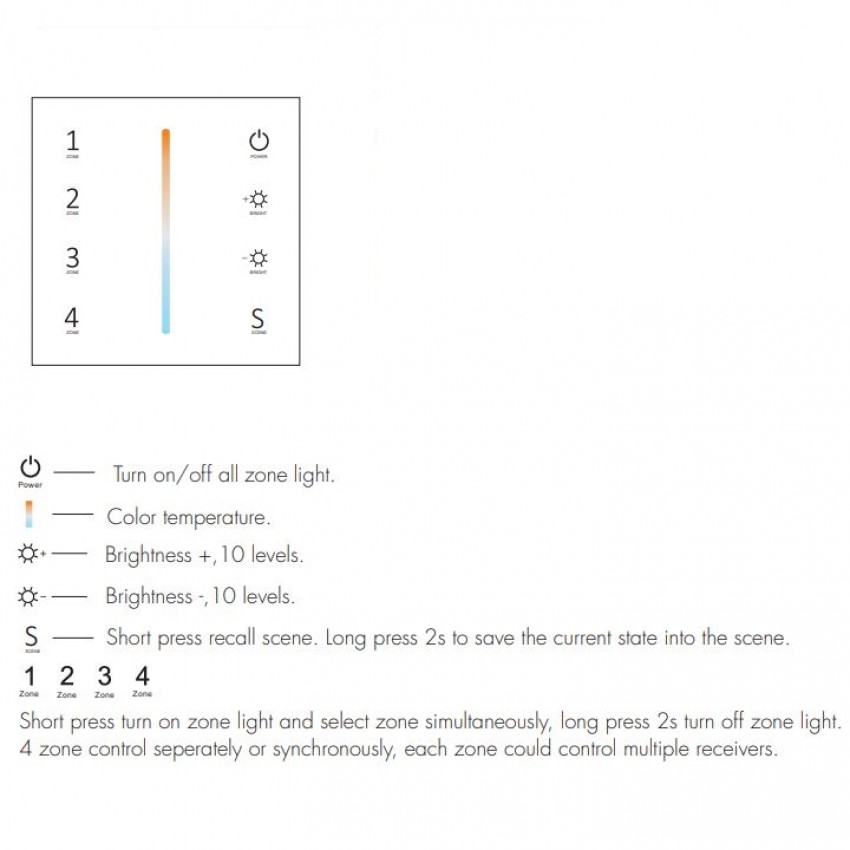

- Touch keys with LED indicator

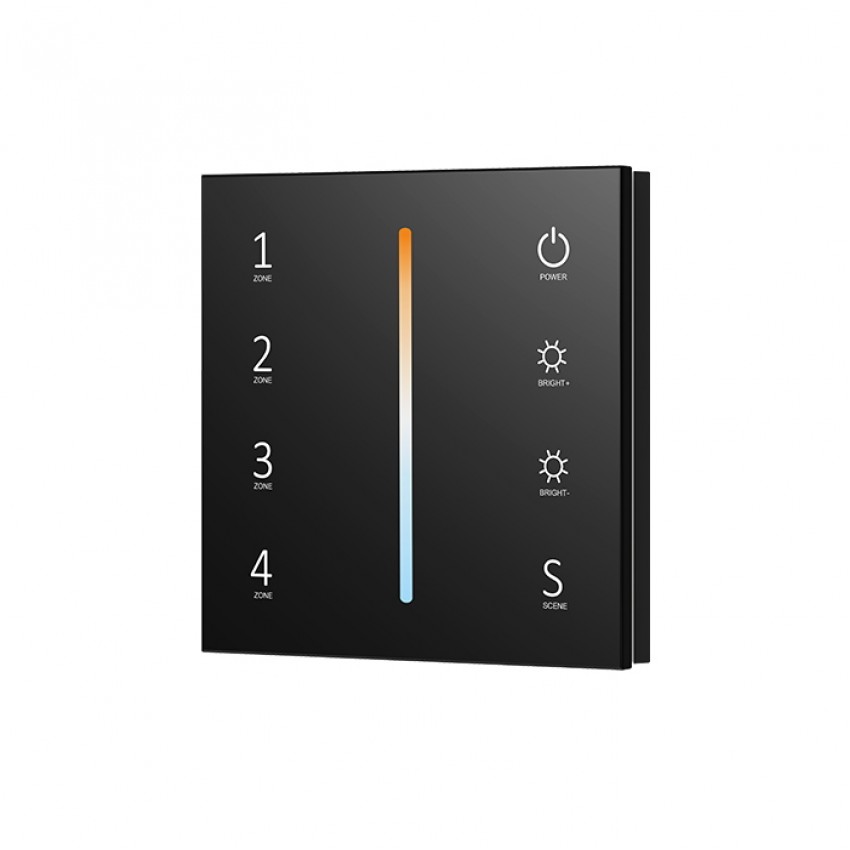

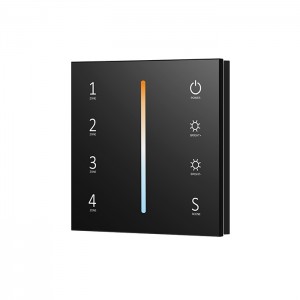

- Available in black or white
- 5 year warranty
Specification
Input and Output
Input voltage
100-240VAC
Output signal
DMX512, RF 2.4GHz
Input current
Max 0.1A
Environment
Operating Temperature
Ta: -30L°C ~ +55°C
IP Rating
IP20
Weight
Net weight
0.176kg
Gross weight
0.230kg
Dimming data
Input signal
Touch key + RF 2.4GHz
RF Control distance
10m (Barrier-free space)
Dimming level
256 levels
Dimming range
0 -100%
Safety & EMC
Safety Standards
EN 62368-1:2020+A11:2020
EMC
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Radio Equipment
ETSI EN 300 328 V2.2.2
Certification
CE,EMC,LVD,RED
Lifespan
Warranty
5 years
